New Card Issuing Systems for Industrial Applications Reading, encoding and printing of magnetic cards, chip cards and RF cards

The card systems of the series KCP-1000, KCP-2000 and KCP-4000 have the capability to issue, read, encode and print magnetic cards, chip cards and RF cards.

These systems are used in varied applications such as:
Parking systems
Toll systems
Canteen systems
and other machines issuing and personalizing individual cards

The solid and robust construction in combination with our proven and reliable KYTronics system components enables secure operation with little effort and expense.

KCP-1000 Series – 1 stacker for 100, 200, 300, 500 cards*

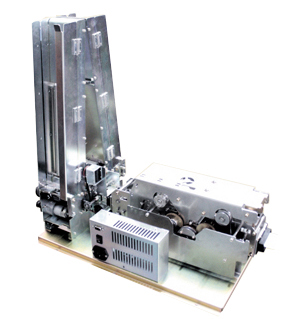

KCP-2000 Series – 1 double stacker for 100 – 500 cards each*

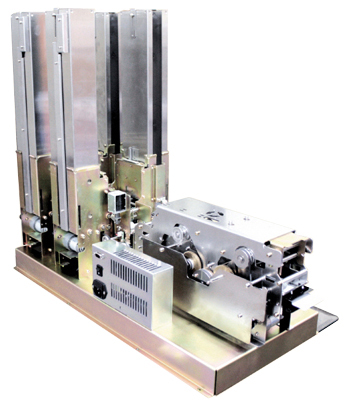

KCP-4000 Series – 4 removable stackers for 100 – 500 cards each*

Reading, encoding and printing of cards

Magnetic cards 3 tracks – reading + writing
HiCo and LoCo encoding

RF cards ISO 14443 A+B – reading + writing
Mifare Ultralight, Mifare® 1K S50, Mifare® 4K S70       Mifare® DESfire

Chip cards – reading + writing
ISO 7815 T=O, T=1 IC cards

Printing of PVC cards

  • Monochrome thermal sublimation printing
  • Resolution: 200 dpi
  • High-speed printing of up to 1200 cards per hour
  • Large card loading capacity  0.76 mm: up to 2000 cards (0.22 mm: 6900 cards)
  • 1,2 or 4 card stackers
  • Individually controllable stackers
  • Robust and reliable industrial design for the processing of large amounts of cards
  • RS232 Interface or USB Interface
  • Optional shutter
  • Card collection (error card capture function)

*Card quantity based on 0.76 mm cards. Card thickness adjustable.
