• One safe lock cartridge for issuing 150 cards (at 0.76 mm)
• Exchange system for quick cartridge  exchange
• Error card capture function
• Safe locked reject card bin
• Anti-fishing shutter

• Reading and writing of contactless chip cards
• Reading and writing of standard magnetic cards
• Reading and writing of HiCo magnetic cards
• Reading and writing of chip cards (RF cards; ISO 14443, Mifare®)
• Reading and writing of contact IC cards (ISO 7816)
• SAM card reader/writer (optional) for ISO 7816 CPU Cards
• EMV2000 certified

• RS232 or USB interface
• Power supply: 24 V DC ± 10%, max. 5 A
• Power consumption: 20W
• Dimensions 492 × 124 × 222 mm (L × W × H)
• On-line firmware updates

The card encoder from the DOC-806 series is characterised by a particularly compact, robust, and low-wear design.
This device is preferred for banking systems (day safes), the issuing of value cards (e.g. phone cards), and in the gaming industry.
The high reliability has made the DOC-806 one of the most popular devices on the market.

Mechanical shutter

Beltless gear drive

• Capacity of cards: 100 cards (at 0.80 mm)
• Card thickness adjustable from 0.2 to 0.8 mm
• Output time: <1.5 sec.
• Output repetition in the case of fault or jam
• Power supply: 24 VDC ± 10%
• Dimensions: 133 × 142 × 92 (L × W × H)
• Interface: TTL
– Card empty sensor
– Mechanical shutter prevents the introduction of foreign objects.
– A clutch mechanism prevents the erroneous output of two cards at the same time
– Direct drive via gears – no timing belts used
– Filling of the magazine from the front or back of the device

Issuers of prepaid cards demand systems that meet their increased security requirements.
It should be possible to remove cards from the direct access without them being manually taken from the magazines.
Transmac offers a range of encoding and issuing systems that meet these industrial security requirements.
The CIM 5000 and BAT 9000 systems (both presented in the blog post of 5 August 2014) have been successfully implemented in the market. We now present the new units of the KSC-5600, CSC-2800, and KSC-2100 series.

In all of these units, no cards can be taken from the closed magazines. An internal storage device reports the number of cards in the magazine. The magazine itself is locked in the system, thereby preventing the unauthorised removal of the entire magazine. A loss of prepaidcards during transport or maintenance can thus be prevented.

two security cartridges for up to 1000 cards (0.76 mm; adjustable from 0.76 mm to 1.0 mm)

• each cartridge has a capacity of 300 or 500 cards (at 0.76 mm)
• exchangeable cartridge system for quick cartridge exchange
• two different cards can be used in a single system
• sort function for defective cards (error card capture function)
• reading and writing of contactless chip cards (RF cards) ISO14443, Mifare®
• RS232 interface

The security cartridges of the KSC-5600 system have their own memory for the serial number of the cartridge as well as the number of cards contained in the cartridge.
The Cartridges themselves are closed and locked in the system. Unauthorised access to the cards is prevented.

Application:

• value card systems
• prepaid cards
• gift cards

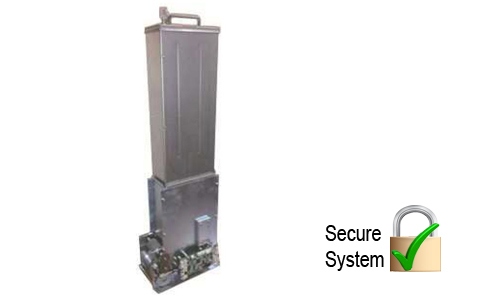

KSC-2100 Series
with closed security Cartridges that are locked in the system

• security cartridge for up to 500 cards (0.76 mm; adjustable from 0.76 mm to 1.0 mm)
• each cartridge has a capacity of 300 or 500 cards (at 0.76 mm).
• exchangeable cartridge system for quick cartridge exchange
• sort function for defective cards (error card capture function)
• RS232 interface
• closed card magazine
• the interchangeable magazine itself is securely locked in the card issuer
• each magazine has an integrated data memory for storing
• the serial number of the magazine
• the number of cards in the magazine

Application:

• gift cards
• value card systems
• prepaid cards
• applications with increased safety requirements

 with closed security Cartridges that are locked in the system

• security cartridge for up to 500 cards (0.76 mm; adjustable from 0.76 mm to 1.0 mm)
• each cartridge has a capacity of 300 or 500 cards (at 0.76 mm).
• exchangeable cartridge system for quick cartridge exchange
• sort function for defective cards (error card capture function)
• reading and writing of contactless chip cards (RF cards) ISO14443, Mifare®
• RS232 interface

The security cartridge of the CSC-2800 system has its own memory for the serial number of the cartridge as well as the number of cards contained in the cartridge.
The Cartridges themselves are closed and locked in the system. Unauthorised access to the cards is prevented.

Application:

• gift cards
• value card systems
• prepaid cards

Combined cards, which feature a bar code in addition to magnetic strips, chips, or RF chips, are mainly used in the area of corporate and student ID cards as well as inventory management systems.
The BIS-1000 encoding system can read all major bar codes and can read and encode magnetic cards, chip cards, and RF cards.

BIS-1000 series

intelligent card issuer and collector with card encoder for:

• – ISO 7811 magnetic strip reader + encoder
  – ISO 7816 chip card reader + encoder
  – ISO14443 reader + encoder for contactless chip cards (e.g. Mifare®)
  – 1D/2D bar code reader

• sort function for faulty cards (error card capture function)
• storage of the sorted cards in a card box

The new KYT-7300 series of card readers

The KYT-7300 series of card readers – one of our most successful devices for use in kiosks, gaming and access controls – has been re-designed.
The series can read ISO magnetic cards and read and encode processor cards (T = 0 T = 1), memory cards (e.g. SLE5542) as well as RF cards in accordance with ISO14443A (Mifare®). Each of these functions is available individually or in any combination.

The KYT-7300 operates with a supply voltage between 9 and 12 V and offers a variety of options:
– card lock (solenoid)
– manual card release button
– shutter
– 1 or 2 SAM card reader
– TTL, RS232 or USB interface
– metal or plastic die
– Customised designs are possible

The CDC-1000 card dispenser and collector with integrated RF reader and writer is now also available with a magazine size of 100 cards.

The CDC-1000 has been successfully implemented in applications requiring a card dispenser that returns cards to the card magazine for re-use or that screens and retains cards under the unit (card capture function).

The CDC-1000 can optionally be delivered with an RF card reader and encoder that can process the ISO14443 (Mifare®) and ISO15693 standards.

Many users of the CDC-1000 card dispenser and collector have requested this device with a larger card magazine. KYTronics Europe has responded to these requests and now offers this device with a magazine for 100 cards (100 cards at 0.76 mm, adjustable).

higher frame detail

Among other things, the CDC-1000 is used in payment terminals for phone cards in hospitals, canteen cards and temporary access systems.
The solid and durable structure of this device allows for long-term and trouble-free use in both consumer and industrial applications.

TTL, RS232, or RS424 are available as an interface. The supply voltage is 24 V and the baud rate is between 9600 and 57600 bps.

http://www.kytronics.eu
info@kytronics.eu

This device is also available with a raised frame and reject bin for screened cards.

AS-1 Anti-skimming modules for manual card reader

Skimming is a technique by which criminals collect data from a card using skimming modules, such as pre-fixed reading modules and cameras, in order to use this data for their own criminal purposes.
In the banking sector, anti-skimming modules, which detect the manipulation of a device and cancel the reading process, have been implemented for some time.

In 2013, 25 353 attacks were reported worldwide. These caused damages in excess of € 248 million.

Access controls to sensitive areas and residential facilities are increasingly becoming targets of skimmers.

Up until now, mainly only banking terminals and SSV have been protected for cost reasons. With the AS1, Transmac now offers an inexpensive anti-skimming module that can be used in manual reading systems and which also provides security against skimmer attacks for access control systems.

The AS1 anti-skimming module is resistant to:
•    light
•    humidity and extreme temperatures
•    electrostatic interactions
•    darkness
The AS1 anti-skimming module cannot be detected by the naked eye.

Optional accessories:
•    button head with external thread (other dimensions/lengths on request)
