POS systems often require card readers that function with OPOS drivers.

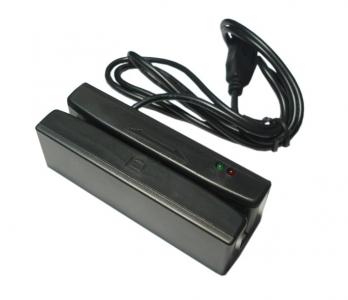

Transmac offers a 90mm swipe card reader with OPOS drivers and a USB interface with the MSR-100D series.
-3-Track Bi-Directional Reading
-Optional Keyboard or HDI Interface
-OPOS Drivers, JPOS Drivers
-LED + Buzzer Status Display
-Win XP, Win 7, Linux, Android, …
-CEE, FLL, RoHS
• Dimensions are only 132 x 85 x 52mm
• 3-Track Magnetic Card Reader (read-only)
• Chip Card Reader and Encoder T=0 T=1 read/write.
• Memory Cards (SLE 5542 (4442) 5528 (4428)…)
• 8 Pin IC Pins
• RF Card Reader + Writer ISO 14443A Mifare, UL, 1K, DESFire read + write
• Installable firmware updates
• Support for newer chip cards without changing systems
• Card output on the front or rear (card intake slot)
• RS232 or USB interface
• 24V power supply
• Optional mouthpiece or shutter
Application: Vending Machines, ID Systems
The demand for our RF readers and encoders is constantly increasing. RFID (Radio Frequency Identification) has gained acceptance in recent years and from now on the marketplace cannot be imagined without it.
For the user the advantages of this technology are self-explanatory: It is made to last, non-contact and economically priced.
What is more, it is extremely versatile in use. Application opportunities arise, for instance, in access control, time tracking, payment systems or vending machines. Moreover, tests with RF bank cards are already being conducted in many countries for the purpose of programming this technical innovation into bank systems too.
You can find products for RF technology in our current catalogue. It goes without saying that we will be happy to advise you on all matters relating to the application of this innovation.
The new SUIV90 series card reader is equipped with 2 magnetic heads in opposite position to process cards with dual magnetic strips or any pull-through direction. The 2 magnetic head configuration reduces read errors and increases the speed of use. The series is available with USB or TTL interface.
Dimensions of the module version without case, 90x17x24mm
1, 2 or 3 track ISO magnetic strips
Supports Microsoft Windows 98 (2nd Edition), ME, 2000, XP, 7
The KYT-2104 card dispenser is impressive thanks to its compact build and solid workmanship. With a 48 card magazine capacity the KYT-2104 is the ideal solution for compact and tabletop units. At present the KYT-2104 is primailly being used in day safes and prepaid card sales. The device is available with R232 or RS422 and can be equipped as an option with a shutter or mouthpiece and a sensor that emits a warning at 10 card level.
For the automatic verding machine industry theTTS-1000 series RF module provides versatile range of applications. Originally developed for use in the kiosk business segment.
With its 8 MB Flash and 2 MB SRAM, 4 extraSAM Card Readers and a reliable 32 bit microprocessor this module has an extensive memory capacity and a high digit rate within a secure system environment. USB 2.0 (12 M bps) RS232 (115.200bps) or RS422interface are available.
Most common 13.56 MHz RF cards can be processed with this system, e.g. ISO 14443A + B, Mifare® , Mifare Classic, UltraLight, Desfire ,SONY Felica C.
In conjunction with the KYT-1000 series motorised transport units or as a built-in module these devices are being used today in cafeteria systems, parking automats and verding machines.
Transmac GmbH introduces a new catalog to 31 sides including more than 200 products. You receive relevant information both in German and in English.
Please make contact with us at interest. We like to send our catalog to you.
The system of the TAM-1000 series is conceived for the printing and encoding of thermal coated magnetic cards.
The integrated 3-track magnetic card reader and encoder is also able to write on highly-coercive magnetic strips (2750Oe, 4000Oe)
The Clamshell construction enables safe and simple system maintenance.
Faulty cards or cards that have not been taken out can be retracted and stored within the machine. (Error card capture function)
Fanfold magnetic cards
Card issue and separation
ISO 7810/11 3-track magnetic cards
Reader + encoder
300 Oe, 2750 Oe, 4000 Oe cards
Thermal printer 200 dpi (Direct Thermal)
Compact and robust design
Ticket vending machines
Access control systems
Public transportation systems
The new card issue module TAM-3000 has been designed to issue thermal coated paper cards as well as for the encoding and printing of these cards.
The high processing speed of TAM-3000 in terms of issuing, encoding and printing of the individual cards, makes this device to be an ideal component for any types of ticket systems.
Faulty cards or cards that have been forgotten to be taken out can be retracted and stored within the machine. (Error card capture function)
- Contactless chip cards
- Single cards issuing
- ISO 14443 13.56Mhz Mifare, UL R+W
- Thermal printer 200 dpi
- Compact and robust design
- Particularly fast issue and collection of cards
- Error card capture function
- RS232 Interface
- Parking systems
- Toll systems
- Ticket vending machines
- Access control systems
- Public transportation systems

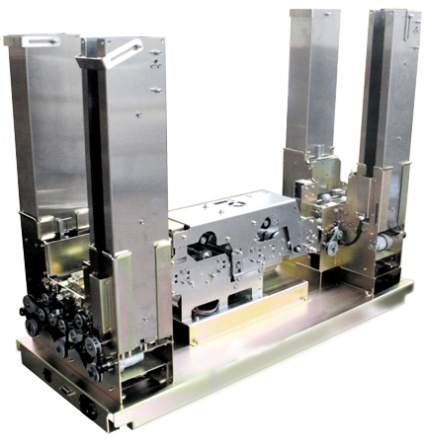

The new encoding and printing system of the CPS-1000 and CPS-2000 series are ideally suited for the personalization of medium-size quantities of cards. The systems are forwarding cards from the card dispenser to the printing and encoding unit and sort them into the opposite removable stacker of the card collecting unit, after the printing and encoding process has been completed.
Since the stackers are individually controllable, various cards, e.g. cards of different values, can be personalized and stored separately.
CPS-1000 with 1 card dispenser and 1 card collector
CPS-2000 with 2 stacker card dispensers and 2 collectors
Reading, encoding and printing of cards
Magnetic cards – 3 tracks reading + writing
HiCo and LoCo encoding
RF cards ISO 14443 A+B – reading + writing
Mifare Ultralight, Mifare® 1K S50, Mifare® 4K S70 Mifare® DESfire
Chip cards – reading + writing
ISO 7815 T=O, T=1 IC cards
Printing of PVC cards
- Monochrome thermal sublimation printing
- Resolution: 200 dpi
- High-speed printing of up to 1200 cards per hour
- Large card loading capacity
- 0.76 mm: up to 2000 cards (0.22 mm: 6900 cards)
- 2 or 4 card stackers (removable stackers)
- Individually controllable stackers
- Robust and reliable industrial design for the processing of large amounts of cards
- RS232 Interface or USB Interface
- Optional shutter
- Card collection (error card capture function)
